The playing field
The playing field is divided into fair territory and foul territory. Fair territory is further divided into the infield and the outfield and territory beyond the outfield fence.
Infield
The infield is a square called a diamond. There is a base at each corner: first base, second base, third base and home plate. The pitching distance is measured from the rear point of the home plate to the front edge of the pitchers plate.
Outfield
The outfield is a grassed area beyond the infield and extends the entire width of the field and to the outfield fence. The table below outlines the distances relevant to the competition.

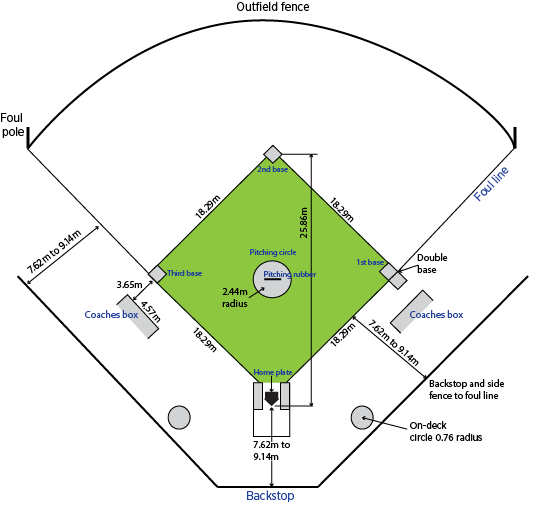

Playing field layout and dimensions
Playing field layout and dimensions
Below is a table outlining the international standard distances. They are measured from the rear point of home plate to the first base and the front edge of the pitchers plate.
International standard distances - Adult
Division | Age group | Bases | Pitching | Outfield fence |
---|
Fastpitch | Men | 18.29m | 14.02m | 76.20m |
Fastpitch | Women | 18.29m | 13.11m | 67.06m |
Slowpitch | Men | 19.81m | 15.24m | 91.44m |
Slowpitch | Women | 19.81m | 15.24m | 83.82m |
Slowpitch | Co-ed | 19.81m | 15.24m | 83.82m |
International standard distances - Youth
Division | Age group | Bases | Pitching | Outfield fence |
---|
Fastpitch | U19 Women | 18.29m | 13.11 | 67.06m |
Fastpitch | U19 Men | 18.29m | 14.02 | 76.20m |
Fastpitch | U16 Women | 18.29m | 12.19 | 67.06m |
Fastpitch | U16 Men | 18.29m | 14.02 | 76.20m |
Slowpitch | U19 Women | 19.81m | 15.24m | 80.77m |
Slowpitch | U19 Men | 19.81m | 15.24m | 91.44m |
Slowpitch | U16 Women | 19.81m | 14.02m | 80.77m |
Slowpitch | U16 Men | 19.81m | 14.02m | 91.44m |
School age programs
The following table is suggested distances for younger aged children.
Age | Pitching | Bases |
---|
6 and under | T-ball | 7.6m |
8 and under | T-ball | 13.7m |
10 and under | 10.66m | 16.76m |
12 and under | 10.66m | 18.28m |
14 and under | 12.9m | 18.28m |
The minimum length of the baselines vary depending on the competition played. For fastpitch and slowpitch the baselines are 18.29m. In wheelchair softball the baselines are 15.24m.
Backstop
The backstop is the area behind the home plate.
Bases
At one corner of the diamond is the home plate with bases at each of the remaining corners. The bases are numbered counter clockwise as 1st base, 2nd base and 3rd base and securely fastened to the ground. Each base is a 38.1cm square and made of a white material. First base is a double base—76.2cm x 38.1cm.

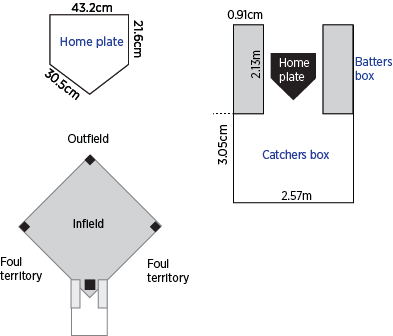

Home plate
Home plate is a five‑sided piece of white rubber located between the two batter’s boxes and the catcher’s box.
Batters and catcher’s box
The batter’s boxes are the rectangular areas beside home plate and the catcher’s box is behind home plate.
Coaches box
A coaches box is located in foul territory outside both baselines.
Foul lines
The two foul lines meet at a right angle at home plate. These lines and the fence running between the baselines defines the limits of the field.
Pitching circle
The pitching circle surrounds the pitching rubber.
Pitching rubber
The pitching rubber is located at the centre of the diamond. It is 61cm wide and 15.3cm deep.
Softball diamond

References
Softball Field Guidelines. Updated January 2015. Softball Australia.
http://www.softball.org.au/wp-content/uploads/2015/09/Softball-Field-GuidelinesFINAL.pdf
